AOI Vacuum Analyzer and Wet Detection System for Waterproof Housing
Brand: AOI
SKU: VWS-02-M16

S$ 225.00 225.0 SGD S$ 225.00 S$ 250.00

S$ 225.00 S$ 250.00

Not Available For Sale

    This combination does not exist.

    Please check with us on availability if this item is urgently required.


    Model VWS-01-M16
    Description Vacuum Analyzer and Wet Detection System for Waterproof Housing

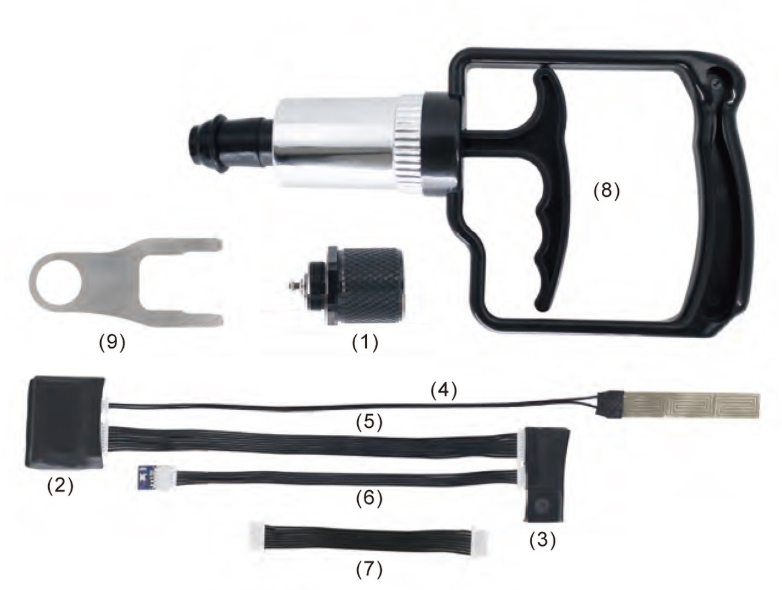

    (1) M16 VACUUM VALVE Valve Material Black Anodized Aluminum Alloy
    Valve Working Depth 100M / 330Ft
    Valve Dimension Ф 24 X 35mm
    Valve Weight 22.1 grams
    (2) MAIN UNIT Vacuum Analyzing Time 4 minutes (one time analyze only)
    Wet Detection All The Time
    Power Source 3.7V 110mAh Lithium Polymer Rechargeable Battery
    Operation Time Per Full Charge 4 days (continual operation)
    Charging Time 45 minutes
    Charging Current 0.3 A
    Main Unit Dimension 28 mm (L) X18 mm (W) X7 mm (H)
    Main Unit Weight 5.3 grams
    (3) SIGNALING & CHARGING UNIT Alarm Signal Output Audio Signal : by Piezo Buzzer
    Visual Signal : by Tri-color LED
    Power Switch Sliding ON / OFF Switch
    Charging Port 5V Micro-USB charging port
    Signaling & Charging Unit Dimension 30 mm (L) X14 mm (W) X7 mm (H)
    Signaling & Charging Unit Weight 2.8 grams
    (4) WET SENSOR STRIP Sensor Flexible Printed Circuit Board (can be trimmed in different length)
    (5)(7) CONNECTION CABLES (Choose either one) (5) Connection Cable Length 140 mm
    (7) Connection Cable Length 75 mm
    ACCESSORIES (6) Additional Visual Alarm Output (Tri-color LED)
    (8) Vacuum Pump
    (9) Wrench for the Valve fastening
